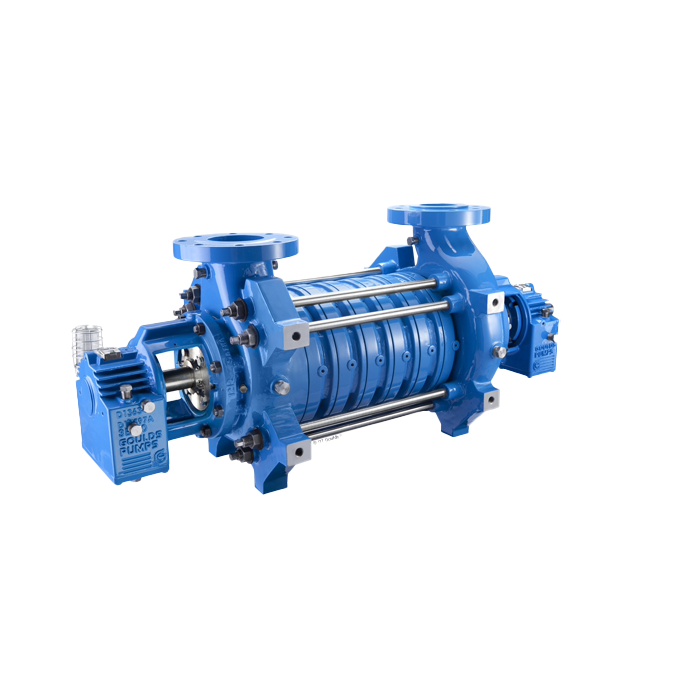

MULTISTAGE RING SECTION PUMP
Key Features
| MULTISTAGE RING SECTION PUMP | : | Product Type: Multistage Ring Section Pump Design: Horizontally Split, Radial Split, Modular Ring Section Design Stages: 2 to 10 (depending on pressure requirement) Capacity Range: Up to 850 m³/h Head Range: Up to 1000 meters Operating Pressure: Up to 100 bar Speed: 1450 / 2900 RPM (depending on model) Temperature Range: -20°C to +180°C Material of Construction: Cast Iron / Ductile Iron / Stainless Steel / Bronze (as per application) Impeller Type: Closed Impeller, Dynamically Balanced Shaft Material: Stainless Steel AISI 410 / AISI 304 / AISI 316 Bearing Type: Grease or Oil-Lubricated Antifriction Bearings Shaft Sealing: Gland Packing / Mechanical Seal Pump Mounting: Horizontal Foot Mounted Direction of Rotation: Clockwise (viewed from drive end) Drive Type: Electric Motor / Diesel Engine Coupling: Flexible or Rigid Coupling Discharge Size: DN 25 to DN 200 mm Suction Size: DN 25 to DN 200 mm Maximum Efficiency: Up to 85% Lubrication Type: Oil or Grease Lubricated Cooling System: Air-Cooled / Water-Cooled (optional) Installation Type: Horizontal / Baseplate Mounted Noise Level: Low Noise Operation Maintenance: Easy Serviceability and Spare Availability Application Type: Clean Water, Hot Water, Condensate, Boiler Feed, Pressure Boosting, Firefighting, Irrigation, Industrial Processes Compliance: ISO 5199 / ISO 2858 / DIN Standards Country of Origin: [Specify Country] Brand Compatibility: Suitable with major motor brands (ABB, Siemens, WEG, etc.) Warranty: 12 Months from Date of Dispatch Optional Features: Pressure Relief Valve Temperature and Pressure Monitoring Ports Special Coatings for Corrosion Resistance Customized Mounting Frames |
| View More Info | ||
MULTISTAGE RING SECTION PUMP –
A
Multistage Ring Section Pump is a high-performance centrifugal pump
designed for applications that require the transfer of fluids at high pressures
over long distances. Its unique multistage design, combined with
precision-engineered ring sections, allows it to efficiently handle demanding
tasks in industries such as water treatment, power generation, oil and gas, and
irrigation. These pumps are known for their durability, efficiency, and ability
to operate reliably under harsh conditions, making them an essential component
in many industrial and municipal systems.
Design and Construction
The Multistage Ring Section Pump consists of multiple impellers mounted on a single shaft, enclosed within a series of precision-cast ring sections. Each impeller acts as a separate pumping stage, boosting the pressure of the fluid progressively as it passes through the pump. The ring section design enables modular construction, making the pump highly flexible and easy to customize for specific pressure and flow requirements.Thepump casing is typically made of robust
materials such as cast iron,
ductile iron, stainless steel, or bronze, depending on the application and the
type of fluid being pumped. The impellers are either closed or
semi-open, designed to minimize hydraulic losses and ensure optimal energy
efficiency. The shaft is made of high-strength steel, dynamically
balanced to reduce vibration and ensure smooth operation.
The
bearing assemblies are engineered to provide excellent support and
minimize wear during continuous operation, while the mechanical seals or
gland packing systems ensure leak-free performance even under high-pressure
conditions. The modular design allows for easy disassembly and maintenance
without disturbing the pipeline layout, reducing downtime and operating costs.
Working Principle
A
Multistage Ring Section Pump operates on the centrifugal principle.The fluid enters the pump through the suction inlet and is directed to the
first impeller. As the impeller rotates, it imparts kinetic energy to the
fluid, converting it into velocity and partial pressure. The fluid then passes
through the diffuser or return channel, where the velocity energy is converted
into pressure energy. This process is repeated across multiple impeller stages,
each increasing the fluid’s pressure incrementally. The final high-pressure
fluid exits through the discharge outlet.
Because
the total head (pressure) generated by the pump is the sum of the individual
heads developed by each stage, these pumps are ideal for applications requiring
high discharge pressures with moderate flow rates.
Key Features
- High Efficiency: Multistage design ensures
energy-efficient performance, reducing operational costs over time.
- Modular Construction: The ring section design
allows easy customization and maintenance.
- Compact Design: Despite multiple stages,
the pump maintains a compact footprint suitable for limited spaces.
- Durable Materials: Built with corrosion- and
wear-resistant materials for long service life.
- Quiet Operation: Precision balancing and
robust bearings minimize noise and vibration.
- Flexible Mounting Options: Can be installed
horizontally or vertically to fit system requirements.
- Leak-Free Sealing: Equipped with advanced
mechanical seals to prevent fluid leakage under high pressure.
Applications
The Multistage
Ring Section Pump is versatile and suitable for a wide range of industrial
and commercial uses, including:
- Water Supply and
Distribution:
Used for municipal water supply systems, high-rise building water boosting, and irrigation networks. - Boiler Feed Systems:
Ideal for feeding water to boilers in thermal power plants and industrial heating systems due to its high-pressure capability. - Reverse Osmosis (RO)
Systems:
Provides consistent high pressure required for RO filtration in desalination and water purification plants. - Firefighting Systems:
Ensures steady water pressure in fire protection systems for industrial and commercial facilities. - Mining and Industrial
Applications:
Used for dewatering, process water transfer, and pressure boosting in mining and manufacturing sectors. - HVAC Systems:
Circulates water in heating and cooling systems for large buildings or industrial plants.
Advantages
- High Pressure with Low Flow: Perfect for applications
requiring high head and moderate flow rate.
- Energy Efficiency: The multistage
configuration reduces energy losses, ensuring cost-effective operation.
- Operational Reliability: Built for continuous duty
with minimal maintenance needs.
- Customizable Design: Can be adapted for
different flow, head, and material requirements.
- Long Service Life: Precision engineering and
durable components reduce wear and extend lifespan.
- Low Maintenance: Easy disassembly and replacement
of parts minimize downtime.
Technical Specifications (Typical Range)
|
Parameter |
Specification |
|
Flow Rate |
Up to 500 m³/h
(varies by model) |
|
Head (Pressure)** |
Up to 1000 meters |
|
Operating Temperature |
-10°C to +120°C |
|
Working Pressure |
Up to 100 bar |
|
Speed |
1450 or 2900 RPM |
|
Material Options |
Cast Iron, Stainless
Steel, Bronze, Duplex Steel |
|
Seal Type |
Mechanical Seal /
Gland Packing |
|
Orientation |
Horizontal / Vertical |
|
Motor Type |
Electric Motor /
Diesel Engine Driven |
Maintenance and Operation
Proper
installation and regular maintenance are crucial for optimal pump performance.
Periodic inspection of seals, bearings, and impellers helps prevent leaks and
mechanical wear. The modular ring section design simplifies overhauling —
individual stages or impellers can be replaced without removing the entire
unit. Lubrication of bearings and alignment checks ensure smooth,
vibration-free operation, extending the life of the pump.
Operators
should also ensure that the pump runs within its designed flow and pressure
range to prevent cavitation and overheating. Using compatible seals and
materials suited to the pumped fluid’s temperature and chemistry is essential
for maintaining efficiency and reliability.
Conclusion
The
Multistage Ring Section Pump represents a perfect blend of engineering
precision, performance efficiency, and operational durability. Its multistage,
ring-section-based design enables it to deliver high pressures reliably while
maintaining energy efficiency and long-term dependability. Whether used in
water supply systems, boiler feed applications, or industrial processes, this
pump stands out as a cost-effective and robust solution for high-pressure fluid
handling needs.
By
combining efficiency, flexibility, and long service life, the Multistage Ring
Section Pump continues to be a trusted choice across industries worldwide.
